PP 6438
ECOGRACE
1000X 1000
Leads Ore Concentrate Filter Cloth FOR Filter press cloth
Vertical DISC Filter Machine Filter Cloth ,
Leaf Filter machine filter cloth
ECOGRACE Filter Cloth Quick Detail:
a. Filter Cloth : Polyester Filter Cloth , Polypropylene Filter Cloth , PA Filter Cloth ,
b. Working temperature: normal working temperature 88 degree C , 110 Degree C peak working temperature.
c. Weight standard: 250g / sqm - 900 g / sqm . Make to order is also accepted.
ECOGRACE Liquid Filter Cloth : PET, PP , PA6 , PA 66 Filter Cloth , Monofilament Filter Cloth , Multi-filament Filter Cloth .
Type of Filter Cloth Bag :Filter press plate ,Filtation Belt Cloth centrifuge Filter , Leaf filter , fluid bed dryer, Rotary / Horizontal DISC filter .
Catalyst, cobalt carbonate, zinc oxide, zirconium carbonate, activated carbon, cobalt carbonate, borate, dyes and intermediates , iron oxide , nickle, salt , aluminum oxide , titanium dioxide, additives , glycerol , pesticides , white carbon black , zinc , calcium carbonate , etc.
Mining Industry :
Red mud , tailing gold , potash fertilizer , vanadium ore , the Tail coal, clean coal, coal washing , clay , Kaolin clay, etc.
Metallurgical Industry :
Alumina / Aluminum oxide Plant Filtration , Gold, molybdenum, leads ore , vanadium , nickel , zinc , copper, tungsten , carbide slag , etc.
Food processing :
Fruit juice, sugar, starch , sweetener, beer , etc.
APPLICATION AND FILTER CLOTH CHOOSING :
| P0802Y | Coal Washing , Zinc Oxide . |
| T0803t | Potash fertilizer |
| P120D/P050D/P080D/P020MD | Double layer monofilament filter cloth |
| P050D, P030MD, P020MD | FGD, Gypsum |
| N9029 | Iron ore concentrate , ALUMINA , ALUMINUM OXIDE |
| N199 | Iron ore concentrate |
| P1010 | Iron ore concentrae |
| P020MD | Leads ore concentrate |
| 9501-32 | Fly ash, coal ash |
| 9501-35 | Fly ash |
| 9501-34 | Zinc oxide |
| P1010sdy | Zinc sulfate |
| PT9502b-41DY | Gold mining , vanadium mine |
| 9502-40 | Borax, vanadium pentoxide |
| PT9502b-31 | Gold |
| P750AB | Copper |
| P120/P190 | Phosphate |
| MP11343Y | Copper |
| 9502-402DY | Iron sulfide |
| 9503-32 | Catalyst |
| P190 | Beer filtration |
| P199s/P11636: | Sugar Plant filtration |
| N120B | Palm oil filtration, other oil, use anti-static filter cloth |
| P1010-37DY | Titanium Dioxide |
| 3233SY | White carbon black |
| 3233SY/108C/P801IIy | Kaolin Clay |
| T3112BY/3233SYY | Pigment, dyestuff |
Benefits
High dimensional stability,
Good abrasion performance,
Wide range of filter rate
Efficient fabric cleaning
Smooth Surface
Easy Cake Releasing .
Instruction
Filter press cloth normally include 4 types,
Polyester(Terylene/PET) Filter Cloth.
Polypropylene (PP) Filter Cloth ,
Chinlon (polyamide/nylon) Filter Cloth
Vinylon PV Filter Cloth .
Polyester Filter Cloth and Polypropylene Filter Cloth is normal and popular and with wider application .
The Filter Cloth are fit in the Plate frame filter press filter cloth is used for solid liquid separation, so it has higher requirement on resistance performance to both acid and alkali, and some time might on the temperature etc...
Polyester ( PET ) Filter Praess Cloth
Polyester Filter Press Cloth are widely applied industries like Pharmaceutical, Non-Ferry Melting,Chemical industrial for the Filter Press equipment ,Frame Plate filter presses, Chamber Filter Press , Membrane Reccessed Filter Press , centrifuge filters, Leaf Filter , Vacuum Belt filters , etc. The filtering precision can reach less than 5 microns.

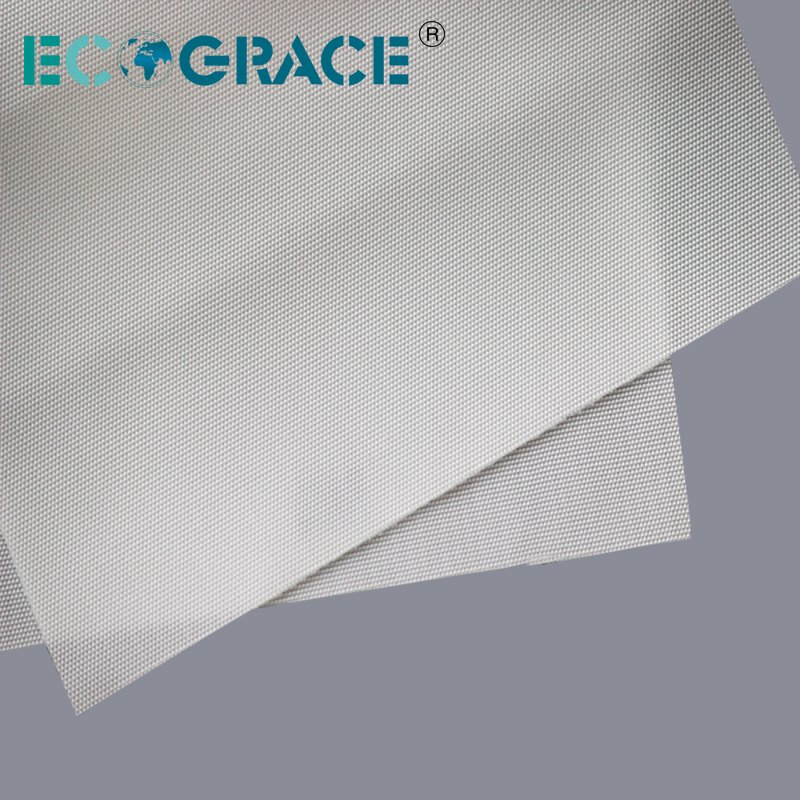

Polypropylene/PP filter cloth
Polypropylene filter clothes are mainly applied in Precision chemicals, Dye chemical, Sugar, Pharmaceutical, Alumina industry for the filter equipment of Frame filter presses,Belt filters,DISC filters,Drum filters ect. The filter precision can reach less than 1 micron.
PP(Polypropylene) Filter Cloth Chemical Function :
Operating Temperature:<90 centigrade
Maximum Temperature:<100 centigrade
Wear Resistance:Fair
Hydrolisis Resistance:Excellent
Alkaline Resistance:Excellent
Acidic Resistance:Excellent
Anti-oxidability:Fair
The filter precision can reach less than 1 micron.
Leads Ore Concentrate Filter Cloth FOR Filter press cloth
Vertical DISC Filter Machine Filter Cloth ,
Leaf Filter machine filter cloth
ECOGRACE Filter Cloth Quick Detail:
a. Filter Cloth : Polyester Filter Cloth , Polypropylene Filter Cloth , PA Filter Cloth ,
b. Working temperature: normal working temperature 88 degree C , 110 Degree C peak working temperature.
c. Weight standard: 250g / sqm - 900 g / sqm . Make to order is also accepted.
ECOGRACE Liquid Filter Cloth : PET, PP , PA6 , PA 66 Filter Cloth , Monofilament Filter Cloth , Multi-filament Filter Cloth .
Type of Filter Cloth Bag :Filter press plate ,Filtation Belt Cloth centrifuge Filter , Leaf filter , fluid bed dryer, Rotary / Horizontal DISC filter .
Catalyst, cobalt carbonate, zinc oxide, zirconium carbonate, activated carbon, cobalt carbonate, borate, dyes and intermediates , iron oxide , nickle, salt , aluminum oxide , titanium dioxide, additives , glycerol , pesticides , white carbon black , zinc , calcium carbonate , etc.
Mining Industry :
Red mud , tailing gold , potash fertilizer , vanadium ore , the Tail coal, clean coal, coal washing , clay , Kaolin clay, etc.
Metallurgical Industry :
Alumina / Aluminum oxide Plant Filtration , Gold, molybdenum, leads ore , vanadium , nickel , zinc , copper, tungsten , carbide slag , etc.
Food processing :
Fruit juice, sugar, starch , sweetener, beer , etc.
APPLICATION AND FILTER CLOTH CHOOSING :
| P0802Y | Coal Washing , Zinc Oxide . |
| T0803t | Potash fertilizer |
| P120D/P050D/P080D/P020MD | Double layer monofilament filter cloth |
| P050D, P030MD, P020MD | FGD, Gypsum |
| N9029 | Iron ore concentrate , ALUMINA , ALUMINUM OXIDE |
| N199 | Iron ore concentrate |
| P1010 | Iron ore concentrae |
| P020MD | Leads ore concentrate |
| 9501-32 | Fly ash, coal ash |
| 9501-35 | Fly ash |
| 9501-34 | Zinc oxide |
| P1010sdy | Zinc sulfate |
| PT9502b-41DY | Gold mining , vanadium mine |
| 9502-40 | Borax, vanadium pentoxide |
| PT9502b-31 | Gold |
| P750AB | Copper |
| P120/P190 | Phosphate |
| MP11343Y | Copper |
| 9502-402DY | Iron sulfide |
| 9503-32 | Catalyst |
| P190 | Beer filtration |
| P199s/P11636: | Sugar Plant filtration |
| N120B | Palm oil filtration, other oil, use anti-static filter cloth |
| P1010-37DY | Titanium Dioxide |
| 3233SY | White carbon black |
| 3233SY/108C/P801IIy | Kaolin Clay |
| T3112BY/3233SYY | Pigment, dyestuff |
Benefits
High dimensional stability,
Good abrasion performance,
Wide range of filter rate
Efficient fabric cleaning
Smooth Surface
Easy Cake Releasing .
Instruction
Filter press cloth normally include 4 types,
Polyester(Terylene/PET) Filter Cloth.
Polypropylene (PP) Filter Cloth ,
Chinlon (polyamide/nylon) Filter Cloth
Vinylon PV Filter Cloth .
Polyester Filter Cloth and Polypropylene Filter Cloth is normal and popular and with wider application .
The Filter Cloth are fit in the Plate frame filter press filter cloth is used for solid liquid separation, so it has higher requirement on resistance performance to both acid and alkali, and some time might on the temperature etc...
Polyester ( PET ) Filter Praess Cloth
Polyester Filter Press Cloth are widely applied industries like Pharmaceutical, Non-Ferry Melting,Chemical industrial for the Filter Press equipment ,Frame Plate filter presses, Chamber Filter Press , Membrane Reccessed Filter Press , centrifuge filters, Leaf Filter , Vacuum Belt filters , etc. The filtering precision can reach less than 5 microns.
Polypropylene/PP filter cloth
Polypropylene filter clothes are mainly applied in Precision chemicals, Dye chemical, Sugar, Pharmaceutical, Alumina industry for the filter equipment of Frame filter presses,Belt filters,DISC filters,Drum filters ect. The filter precision can reach less than 1 micron.
PP(Polypropylene) Filter Cloth Chemical Function :
Operating Temperature:<90 centigrade
Maximum Temperature:<100 centigrade
Wear Resistance:Fair
Hydrolisis Resistance:Excellent
Alkaline Resistance:Excellent
Acidic Resistance:Excellent
Anti-oxidability:Fair
The filter precision can reach less than 1 micron.
